Introduction

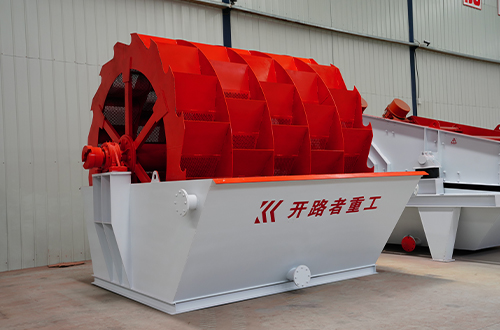

Wheel Sand Washing Machine, also known as wheel type sand washer, is essential equipment for sand production lines. It is mainly used for washing, grading, and dewatering sand in construction, mining, and concrete industries. This machine features wheel-bucket structure, high cleaning efficiency, and low power consumption. By separating fine impurities and removing excess dust from sand, it enhances quality of finished materials. With strong adaptability, easy maintenance, and long service life, it has become a popular choice in modern sand processing plants.

Technical Parameters

Model	Impeller specification outer diameter×width	Impeller speed (r/min)	Maximum feed size (mm)	Capacity (t/h)	Motor Power (kw)	Overall size length×width×height (mm)
KLZ-XS2610	Φ2600×1000	1.95	≤10	20-50	5.5	3255×1982×2690
KLZ-XS2816	Φ2800×1600	1.95	≤10	30-60	11	3540×3000×2880
KLZ-XS3016	Φ3000×1600	1.95	≤10	50-120	15	3845×3000×3080
KLZ-XS3220	Φ3200×2000	1.95	≤10	70-160	15	4100×3560×3300
KLZ-XS3230	Φ3200×3000	1.95	≤10	180-220	18.5	4100×3560×3300
KLZ-XS3620	Φ3600×2000	1.95	≤10	100-180	18.5	4600×3560×3700

360° panoramic view of the product

No pictures

Working Principle

Motor drives impeller to rotate slowly through V-belt, reducer, and gear. As sand enters washing tank, it is stirred and tumbled by rotating wheel, which allows impurities and dust to be removed. Clean sand is then lifted by impeller and discharged, while wastewater and fine particles are drained away through overflow outlet, completing cleaning process.

Features

Application

Durable And Stable

The impeller drive bearing device is isolated from water and water-receiving materials, which effectively reduces the failure rate and saves costs; it operates normally in harsh environments

High Degree Of Cleaning

The fineness modulus meets the standard requirements, meets the requirements of high-grade materials, and is widely used

Less Material Loss

During the sand washing process, the loss of fine sand and stone powder is small, and it has a new sealing structure and an adjustable overflow weir plate

Less Wearing Parts

No wearing parts, less maintenance, long service life; water washing process avoids dust pollution, mud and water are separated, and water resources are reused

dETAIL

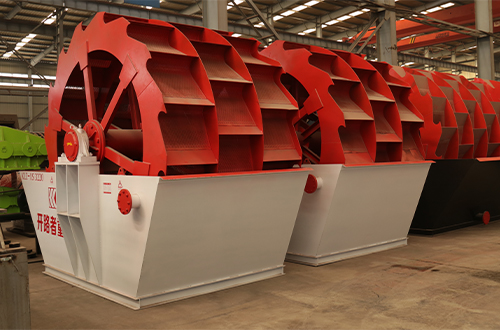

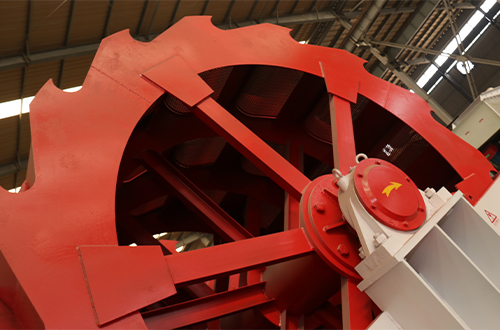

Product Detail Show
