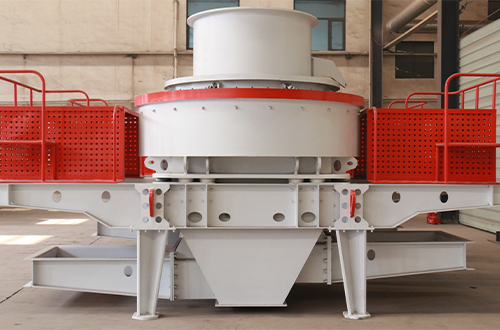

VSI Series Vertical Shaft Impact Crusher

Vertical Shaft Impact Crusher (VSI Crusher) is an advanced and energy-efficient crushing machine that utilizes centrifugal force and high-speed impact to break down materials. During operation, materials are fed into a high-speed rotor, which accelerates them and projects them outward at high velocity. The particles then collide with a surrounding rock bed (rock-on-rock) or impact plates (rock-on-steel), leading to multiple stages of fragmentation and shaping. VSI crushers are widely used for the final stage of crushing in the production of high-quality manufactured sand and well-graded aggregates, especially for hard and abrasive materials like granite, basalt, and quartz. The unique crushing principle enables the production of cubical particles with excellent shape and consistency, making VSI ideal for concrete, asphalt, and other demanding applications. In addition to superior product quality, VSI crushers offer advantages such as adjustable output size, low dust generation, easy maintenance, and reduced energy consumption. With their high reliability and performance, they are essential equipment in modern sand and aggregate production lines.

Technical Parameters

Model	Capacity (t/h)		The best feed size (mm)		Rotating speed (r/min)	Dual motor power (kw)	Overall size (leng×width×height) (mm)	Weight (t)	Vibration sensor	Lubrication hydraulic station
Model	Feed atcenter&sides	Full center feed	Soft material	Hard material	Rotating speed (r/min)	Dual motor power (kw)	Overall size (leng×width×height) (mm)	Weight (t)	Vibration sensor	Double oil pump motor power	Safety protection	Overall size (mm)	Fuel tank heating power
VSI7615	150-280	70-140	35	30	1700-1900	150	4100×2330×2300	12.1	Detection range: 0.1-20mm/s Continuousty adjustable	2×0.25kw	Dual oil pumps ensure reliable lubrication; Auto shutdown on low pressure or no flow; Water-cooled system; Motor preheating for winter start	765×885×1160	4kw
VSI8522	240-380	120-200	40	35	1530-1700	220	4140×2600×2700	14.8
VSI9532	350-540	180-280	45	40	1380-1660	320	4800×2571×2893	18.6
VSI1145	500-640	250-360	50	45	1200-1390	440	5450×2850×3335	21.5
VSI1150	413-442	344-368	55	45	1000-1300	500	5500×2750×3950	23		0.75kw
VSI1263	545-583	454-486	60	50	900-1200	630	5750×2980×3410	24.5		0.75kw

360° panoramic view of the product

No pictures

Working Principle

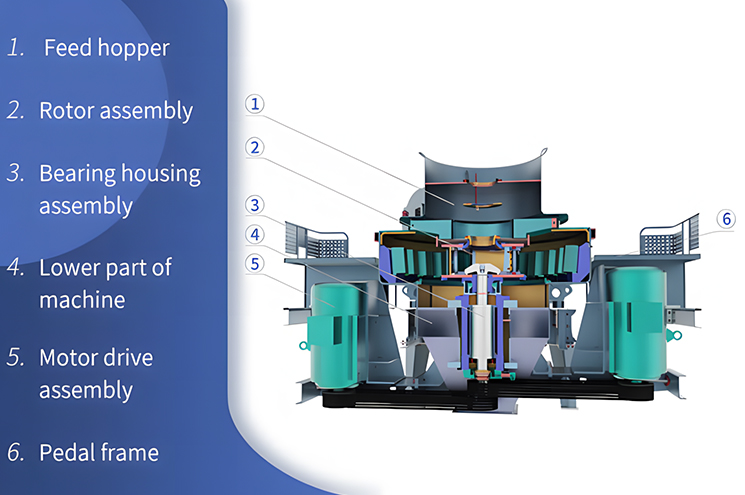

The vertical shaft impact crusher (VSI) operates on the principle of high-speed rotor acceleration and material self-impact. During operation, materials are fed into the center of the rotating rotor. The rotor, spinning at high speed, flings the materials outward through centrifugal force toward the crushing chamber. Once ejected, the materials collide either with a surrounding rock lining (rock-on-rock) or impact plates (rock-on-steel), depending on the crusher configuration. These high-velocity impacts cause the materials to fracture and break into smaller, well-shaped particles. This repeated process of acceleration, impact, and rebound produces high-quality, cubical aggregates and manufactured sand. The final particle size can be controlled by adjusting the rotor speed and the type or layout of the impact surface. VSI crushers are widely used for fine crushing and shaping in industries such as construction, mining, and sand making.

Features

Application

New Process Design

Adopting a new four-port design, compared with the three-port impeller, the crushing efficiency of the same material is increased by 20%, and the wear on wear-resistant parts is reduced

Energy Saving

Deep cavity rotor design, greater throughput, self-circulation of airflow inside the vortex cavity, less dust and low noise

One Machine With Multiple Functions

The sand making and shaping of the special rotor can be freely converted, and the peripheral guard plate can be removed for hard rock stone shaping, and the flake rate is greatly reduced; the peripheral guard plate can be used for hard rock sand making

High Output

Reasonable material impact angle design in the crushing chamber reduces energy consumption and use costs, and increases output per hour

dETAIL

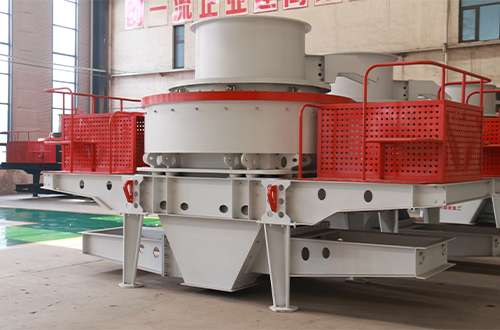

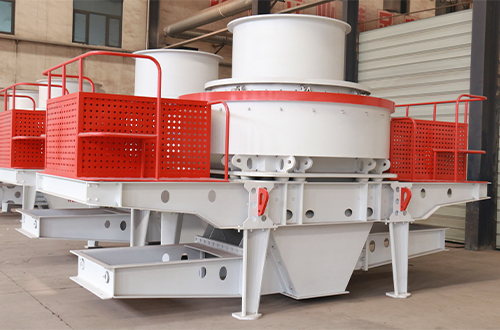

Product Detail Show
