PE Jaw Crusher

Introduction

Parameters

360° Panorama

Working Principle

Features

Detail

Introduction

Jaw crusher features advanced crushing chamber design and is built with high-strength materials, providing excellent crushing ratio and wear resistance. Suitable for processing various ores and large materials with compressive strength up to 320 MPa. Compact structure and easy maintenance make it ideal for quarrying, mining, construction waste recycling, and metallurgy industries. Moving jaw is engineered with optimized motion parameters to improve crushing efficiency and reduce energy consumption. Multiple models are available to meet different capacity and output size requirements.

Technical Parameters

Model	Feeding inlet size (mm)	Feed size (mm)	Outlet size (mm)	Capacity (t/h)	Motor Power (kw)	Weight (t)	Overall size (mm)
PE1500×1800	1500×1800	≤1200	210-360	520-1100	280-8	132	7460×6235×4249
PE1200×1500	1200×1500	≤1020	150-300	400-800	200-8	100.9	6380×5310×3710
PE1000×1200	1000×1200	≤850	200-300	280-560	132-6	69	5350×4280×3050
PE900×1200	900×1200	≤750	95-165	220-450	132-6	58	3800×3166×3045
PE750×1060	750×1060	≤630	80-140	110-320	110-6	29	2655×2302×3110
PE600×900	600×900	≤480	65-160	90-180	90-6	17	2290×2206×2370
PE500×750	500×750	≤425	50-100	40-110	55-6	12	2035×1921×2000
PEX500×1500	500×1500	≤280	20-110	30-130	75-6	17	1965×2518×1930
PEX300×1300	300×1300	≤250	20-90	30-90	55-6	11.5	1750×2320×1724
PEX250×1200	250×1200	≤210	25-60	20-60	37-6	8.5	2192×1900×1950
PEX250×1000	250×1000	≤210	25-60	15-50	30-6	7	1550×1964×1380
PEX250×750	250×750	≤210	25-60	15-30	22-6	5	1667×1545×1020

360° panoramic view of the product

No pictures

Working Principle

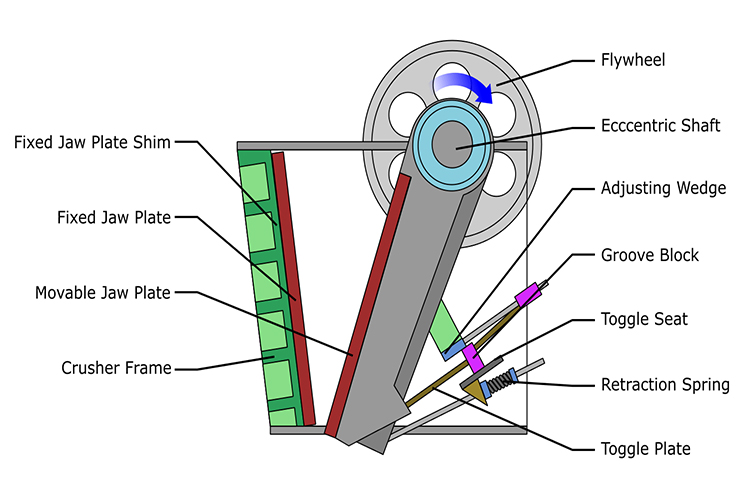

The crushing method of the jaw crusher is a curved extrusion type, and its working principle is to simulate the jaw movement of animals. When working, the motor drives the belt and pulley through the eccentric shaft to move the movable jaw up and down. When the movable jaw rises, the angle between the toggle plate and the movable jaw becomes larger, so that the movable jaw is pushed close to the fixed jaw, and the materials are crushed many times through the extrusion, friction and grinding between the two jaws. When the movable jaw descends, the angle between the toggle plate and the movable jaw becomes smaller, and the movable jaw leaves the fixed jaw under the action of the pull rod and the spring, and the crushed material is discharged freely through the discharge port at the lower part of the jaw cavity under the action of gravity. With the continuous rotation of the motor, the movable jaw periodically crushes and discharges materials to achieve mass production.

Features

Application

High yield and high efficiency

The symmetrical crushing cavity is deepened, the actual entrance width is consistent with the nominal width, and the crushing ratio is large

Advanced technology

The flywheel, slot block and counterweight block have passed strict technical parameter review, effectively reducing the vibration level of the equipment and improving the smooth operation of the equipment

Automation

The motor can be started and stopped under load, and can also work when the crushing chamber is completely full or overloaded, with a high degree of automation

Energy saving and low noise

Using high-quality cast steel assembly, movable claw assembly and flywheel, forging and processing heavy-duty eccentric shaft, the quality is reliable, and the single machine is energy-saving

dETAIL

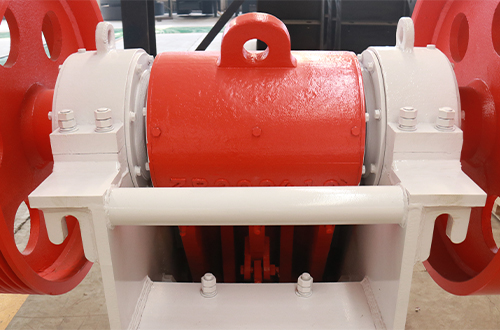

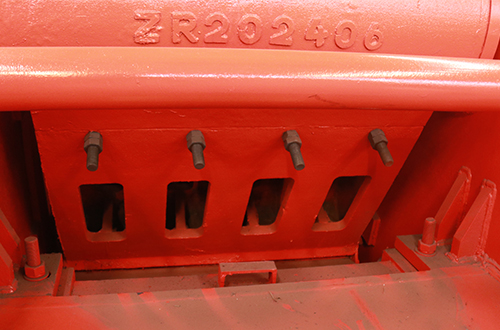

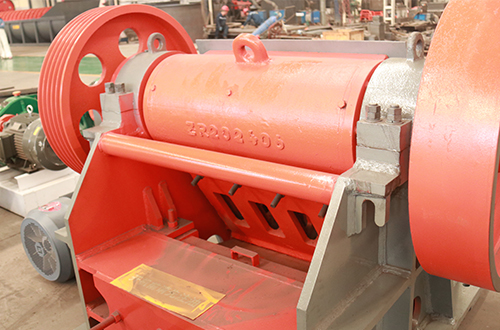

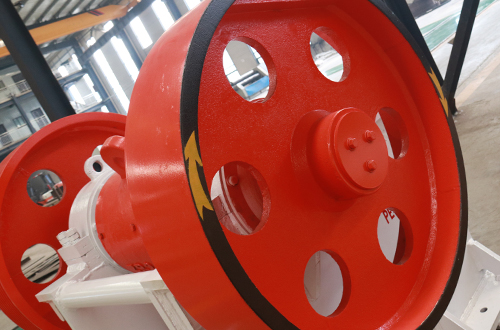

Product Detail Show
