Introduction

Multi-Cylinder Hydraulic Cone Crusher features an advanced multi-cylinder hydraulic system that enables precise control and automatic adjustment of the crushing chamber, ensuring stability and high efficiency during operation. Designed with a robust crushing cone and wear-resistant materials, it effectively handles hard ores such as granite, basalt, and iron ore. The crusher offers advantages such as a large crushing ratio, high output, low energy consumption, and simple operation. Its hydraulic system provides overload protection and rapid discharge, significantly improving work efficiency and equipment safety. With a compact structure and small footprint, it is easy to install and maintain. This crusher is widely applied in mining, construction waste recycling, metallurgy, and cement production. Its excellent performance and stable operation have made it a preferred choice for many mining enterprises and engineering projects, representing an essential piece of equipment for modern, efficient ore crushing.

Technical Parameters

Model	Capacity	Discharge port
Model	Capacity	6mm	8mm	10mm	13mm	16mm	19mm	22mm	25mm	32mm	38mm	45mm	51mm
HP100	t/h	45-55	50-60	55-70	60-80	70-90	75-95	80-100	85-110	100-140	–	–	–
HP200	t/h	–	–	90-120	120-150	140-180	150-190	160-200	170-220	190-235	210-250	–	–
HP300	t/h	–	–	115-140	150-185	180-220	200-240	220-260	230-280	250-320	300-380	350-440	–
HP400	t/h	–	–	140-175	185-230	225-280	255-320	275-345	295-370	325-430	360-490	410-560	465-630
HP500	t/h	–	–	175-220	230-290	280-350	320-400	345-430	365-455	405-535	445-605	510-700	580-790
HP800	t/h	–	–	260-335	325-425	385-500	435-545	470-600	495-730	545-800	600-950	690-1050	785-1200

360° panoramic view of the product

No pictures

Working Principle

The motor drives the horizontal shaft to rotate, and the horizontal shaft is directly transmitted to the gear. The gear drives the eccentric bushing to rotate around the main shaft, and the eccentric bushing drives the moving cone to swing and rotate. The copper bushings inlaid between the main shaft and the eccentric bushing, and between the eccentric bushing and the moving cone act as bearings. Adjust the size of the discharge opening by rotating the fixed cone. The 6 hydraulic cylinders outside the main engine pull the fixed cone to protect the overload and clear the cavity. The whole set of crusher is composed of host machine, lubrication system and electric control system.

Features

Application

Structural Upgrade

The design of transmission rotating parts and lubricating and sealing structure is further optimized, the force of each part is more reasonable, the power conversion is more efficient, and a larger eccentricity and higher speed can be used

Full Hydraulic Control

The crushing principle and technical parameters are advanced, and the full hydraulic control is used. The equipment from the safety cavity cleaning to the adjustment and locking, all adopt hydraulic work

Intelligent Automation

Equipped with an integrated hydraulic lubrication system and a centralized automated intelligent control system to monitor the operating status of the equipment in real time

Good Particle Shape

The proportion of finished cubes is increased, and the needle-like particles are reduced, which improves the quality of finished products

dETAIL

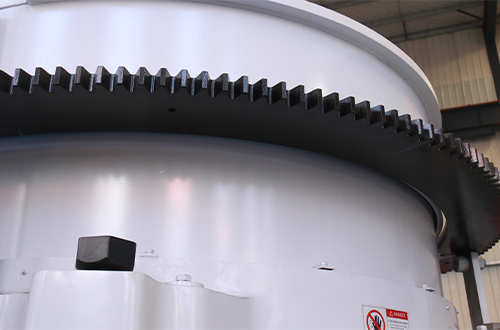

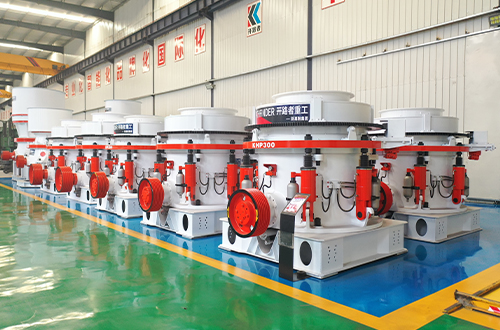

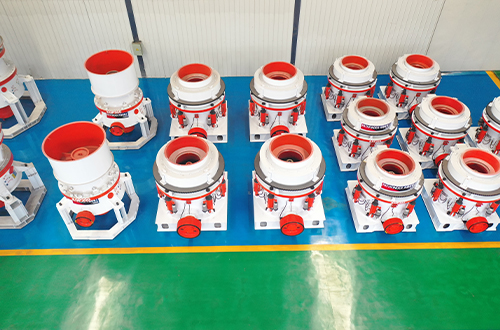

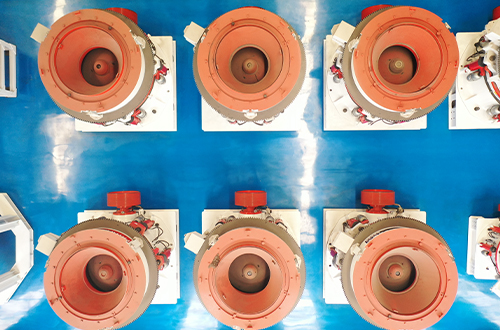

Product Detail Show

Fill Out The Enquiry Form And We Will Contact You Shortly

Chat Now >>

Multi-Cylinder Cone Crusher

Multi-Cylinder Hydraulic Cone Crusher is a high-efficiency and energy-saving crushing machine that utilizes a multi-cylinder hydraulic system for precise adjustment, ensuring stable operation of the crushing chamber. It is suitable for medium to hard ores in secondary and tertiary crushing applications, offering high crushing efficiency and large output. The compact structure and easy maintenance make it widely used in mining, construction waste processing, metallurgy, and other industries. This crusher is an ideal choice for modern ore crushing needs.

Capacity

90-1200t/h

Feeding Size

≤353mm
