Magnetic Separator

Introduction

Parameters

360° Panorama

Working Principle

Features

Detail

Introduction

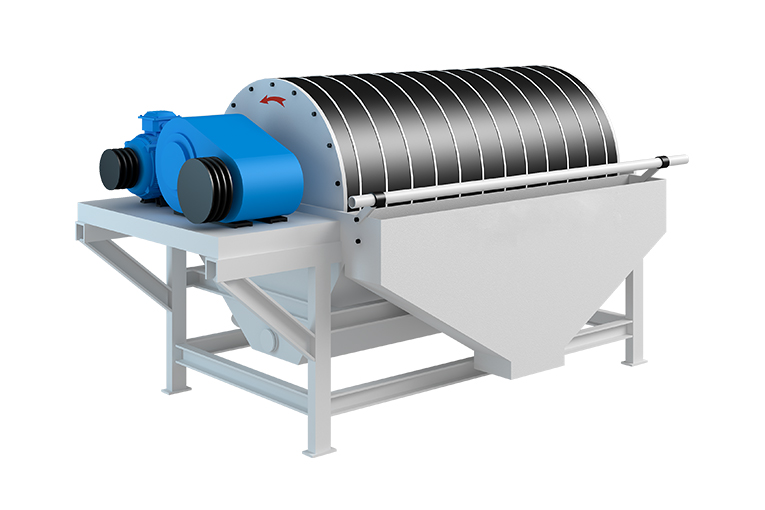

Magnetic Separator is a robust and efficient machine engineered for continuous extraction of magnetic minerals from wet or dry materials. It features durable stainless steel drum with built-in permanent magnetic system that generates stable magnetic field without need for power supply. As slurry flows into tank, magnetic particles are attracted to drum surface and carried away from non-magnetic material stream, thus achieving separation. This equipment is ideal for processing magnetite, pyrrhotite, ilmenite, and other magnetic minerals, as well as for removing iron contaminants from non-magnetic materials like quartz, feldspar, and kaolin. With advantages including simple structure, low maintenance, low energy consumption, and strong adaptability to various processing conditions, Magnetic Separator plays critical role in mineral beneficiation, chemical processing, and recycling industries.

Technical Parameters

Model	Cylinder diameter (mm)	Cylinder length (mm)	Cylinder field strength (mT)	Cylinder rotating speed (r/min)	Dry ore processing capacity (t/h)	Feed particle size (mm)	Pulp concentration (%)	Motor Power (kw)	Gross weight (t)	Length×Width×Height (mm)
CTBC1018	1000	1800	300-500	23	36-54	0-4	20-50	5.5	5.2	3160×2250×1750
CTBC1024	1000	2400	300-500	23	44-75	0-4	20-50	7.5	6.4	3790×2250×1750
CTBC1030	1000	3000	300-500	23	66-103	0-4	20-50	7.5	7.1	4460×2250×1750
CTBC1218	1000	1800	300-500	20	47-82	0-4	20-50	7.5	6.7	3380×2460×2000
CTBC1224	1000	2400	300-500	20	62-105	0-4	20-50	11	7.2	4190×2460×2000
CTBC1230	1000	3000	300-500	20	83-129	0-4	20-50	11	8.9	4770×2460×2000

360° panoramic view of the product

No pictures

Working Principle

Magnetic Separator operates based on principle of magnetic attraction. When mineral slurry is fed into tank, it flows around rotating drum that contains fixed array of high-intensity permanent magnets. Magnetic particles in slurry are attracted to drum surface and rotate with it, while non-magnetic materials pass freely and are discharged separately. As drum rotates past magnetic field, captured magnetic materials are released by scraper into separate discharge chute, completing separation process efficiently and continuously.

Features

Application

Strong Magnetic Field

The magnet is made of high-quality ferrite material and rare earth magnet steel, which has high strength and strong anti-demagnetization ability

Wear Resistant Material

The surface of the barrel is made of non-magnetic stainless steel and covered with wear-resistant rubber

Adaptable

The duckbill type flushing pipe has strong adaptability to water quality and can withstand large fluctuations

Good Filtering Effect

Realize efficient separation of magnetic minerals and non-magnetic minerals

dETAIL

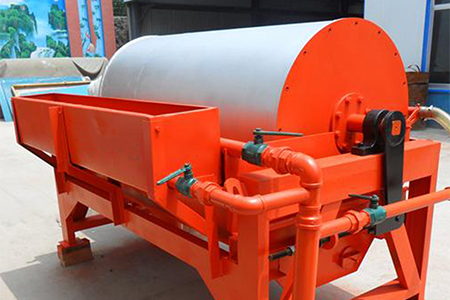

Product Detail Show

Related Products

CS Single-Cylinder Cone Crusher

CS Single-Cylinder Hydraulic Cone Crusher is a highly efficient crushing equipment that combines mechanical, hydraulic, automation, and intelligent control technologies. It is suitable for medium and fine crushing of medium-hard materials, featuring a simple structure, stable performance, and low production cost. Widely used in metallurgy, construction, hydropower, and other industries.

Capacity

78-1050t/h

Feeding Size

≤560mm

Chat Now >>

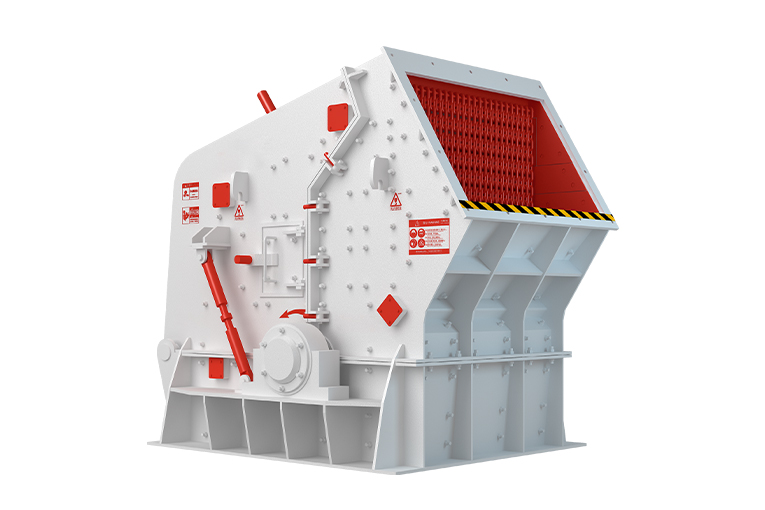

Impact Crusher

Impact Crusher is a highly efficient crushing machine that uses impact energy to break materials. It is ideal for medium-hard to soft materials such as limestone, concrete, and asphalt. With its simple structure, high reduction ratio, and excellent particle shape, the impact crusher is widely used in mining, construction, road building, and recycling industries. It also offers convenient maintenance and reliable performance under various working conditions.

Capacity

30-800t/h

Feeding Size

≤800mm

Chat Now >>

Gyratory Crusher

Gyratory crusher integrates mechanical, hydraulic, electrical, automation, and intelligent control technologies, representing an advanced generation of high-capacity, efficient, and intelligent primary crushing equipment. Compared with other crushers, K series gyratory crusher delivers higher crushing efficiency, lower operating costs, and easier maintenance and adjustment.

Capacity

310-3200t/h

Feeding Size

≤1600mm

Chat Now >>

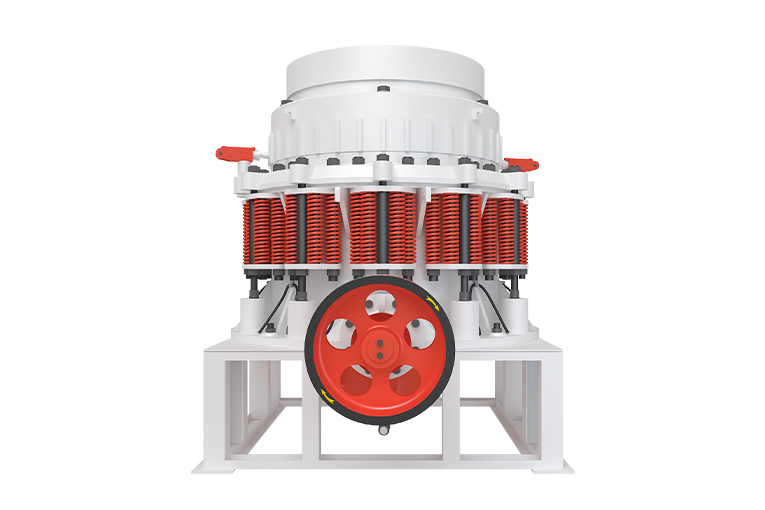

Compound Cone Crusher

Compound Cone Crusher is a high-performance crushing machine that integrates spring and hydraulic technologies. It is suitable for secondary, tertiary, and fine crushing of various hard and medium-hard materials. With its reliable structure, high crushing efficiency, and uniform product size, it is widely used in mining, metallurgy, construction, road building, and chemical industries.

Capacity

80-610t/h

Feeding Size

≤300mm

Chat Now >>

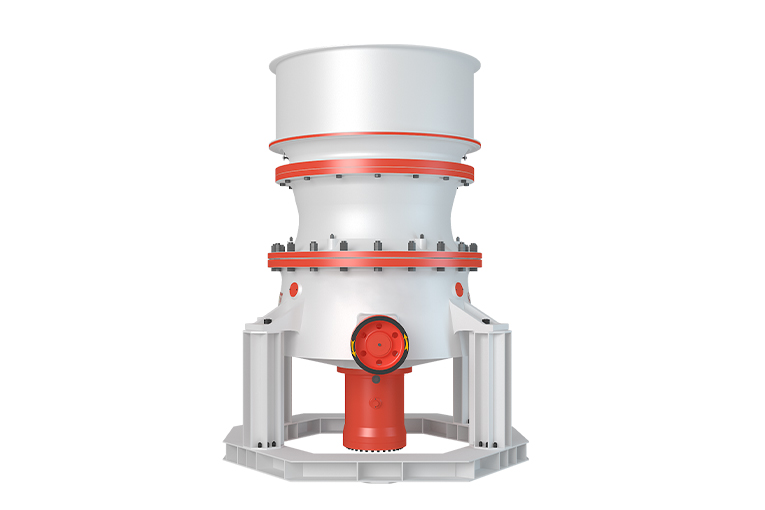

GP Single-Cylinder Cone Crusher

GP Single-Cylinder Hydraulic Cone Crusher is a highly efficient crushing equipment that combines mechanical, hydraulic, automation, and intelligent control technologies. It is suitable for medium and fine crushing of medium-hard materials, featuring a simple structure, stable performance, and low production cost. Widely used in metallurgy, construction, hydropower, and other industries.

Capacity

35-1400t/h

Feeding Size

≤420mm

Chat Now >>

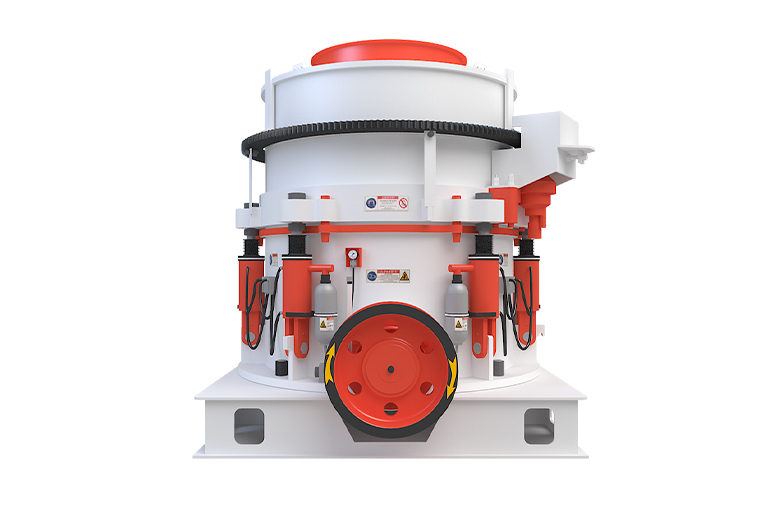

Multi-Cylinder Cone Crusher
