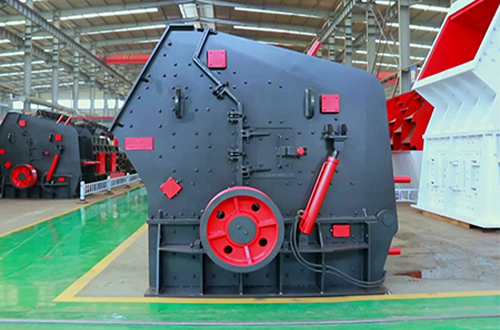

Introduction

The impact crusher is an efficient and versatile crushing machine that uses high-speed impact energy to break materials. As the rotor spins, materials are struck by blow bars and thrown against impact plates, undergoing repeated impact and fragmentation. This results in high reduction ratios and well-shaped end products. Suitable for medium to soft materials like limestone, concrete, and asphalt, it is widely used in mining, construction, road building, and recycling. With adjustable settings, wear-resistant components, and easy maintenance, the impact crusher offers reliable performance and flexibility in both primary and secondary crushing applications.

Technical Parameters

Model	Specification (mm)	Feeding inlet size (mm)	Feed size (mm)	Production capacity (t/h)	Power (kw)	Gross weight (t)	Overall size (mm)
PF1007	Φ1000×700	400×730	300	30-70	45	12	2330×1660×2300
PF1010	Φ1000×1050	400×1080	350	50-90	55	15	2370×1700×2390
PF1210	Φ1250×1050	400×1080	350	70-130	110	17.7	2680×2160×2800
PF1214	Φ1250×1400	400×1430	350	100-180	132	22.4	2650×2460×2800
PF1315	Φ1320×1500	860×1520	500	130-250	200	27	3180×2720×3120
PF1320	Φ1320×2000	860×2030	500	160-350	250	30	3200×3100×3120
PF1520	Φ1500×2000	990×2030	700	200-550	315	50	3960×3560×3330
PF1820	Φ1800×2000	1260×2030	800	400-800	630	83	4400×3860×4010

360° panoramic view of the product

No pictures

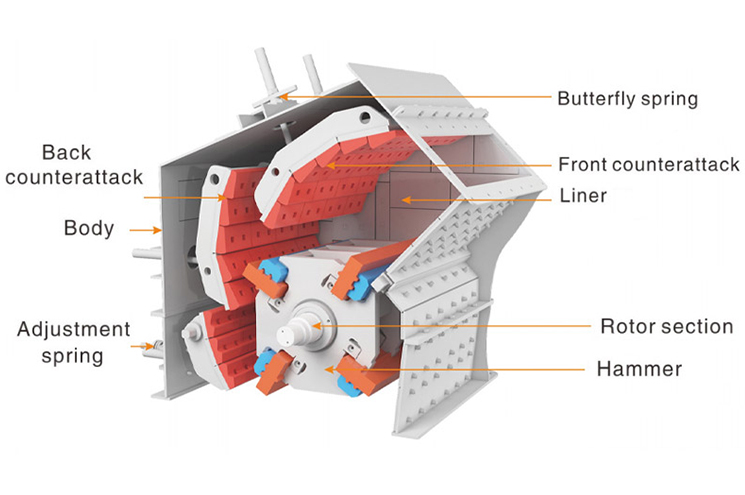

Working Principle

The impact crusher operates by using impact energy to crush materials. When the machine is running, the motor drives the rotor to rotate at high speed. As the material enters the crushing chamber, it is struck by the high-speed rotating blow bars attached to the rotor. The material is then thrown against the impact plates (also known as breaker plates) fixed inside the crushing chamber, where it is crushed by the force of repeated impacts and rebounds. This process continues as the material bounces back and forth between the rotor and impact plates until it is broken down to the desired size. The final product is discharged from the bottom of the machine. The size and shape of the output can be adjusted by changing the rotor speed or the position of the impact plates. Impact crushers are known for producing well-shaped particles with a high reduction ratio, making them ideal for processing soft to medium-hard materials like limestone, concrete, and asphalt in mining, construction, and recycling applications.

Features

Application

High Quality Material

The rotor, hammer plate, liner, etc. are all made of high-quality steel, which is durable; the blow bar is poured with Gaoming wear-resistant composite technology, which has a large impact resistance; brand bearings have a large load-carrying capacity

Excellent Particle Shape

Involute-type crushing cavity, three-stage crushing, self-contained shaping function; large crushing ratio, product shape is polygonal; "stone strikes iron" principle, more crushing and less grinding, low powder output rate

Reasonable Structure

The crushing chamber is optimized, and the material passes through a large shaft; the high-precision heavy-duty rotor has a large rotating inertia, a large crushing chamber, a large space for material movement, and high crushing efficiency

Granularity Controllable

A variety of methods can effectively control the discharge particle size to meet the requirements of different users for different finished product specifications; each bonding surface of the equipment has mature technology, is firmly fixed, and operates stably

dETAIL

Product Detail Show
