Hard Rock Mobile Crushing Plant

Introduction

Parameters

360° Panorama

Working Principle

Features

Detail

Introduction

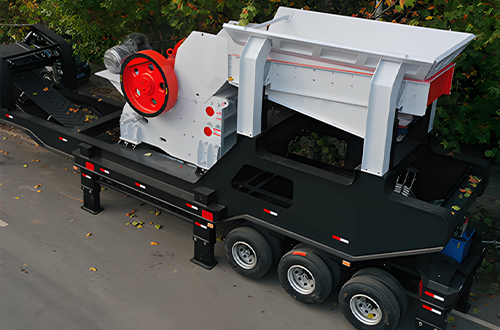

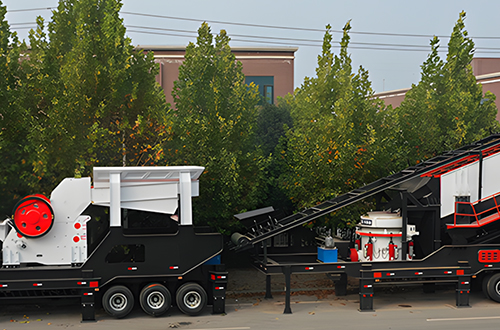

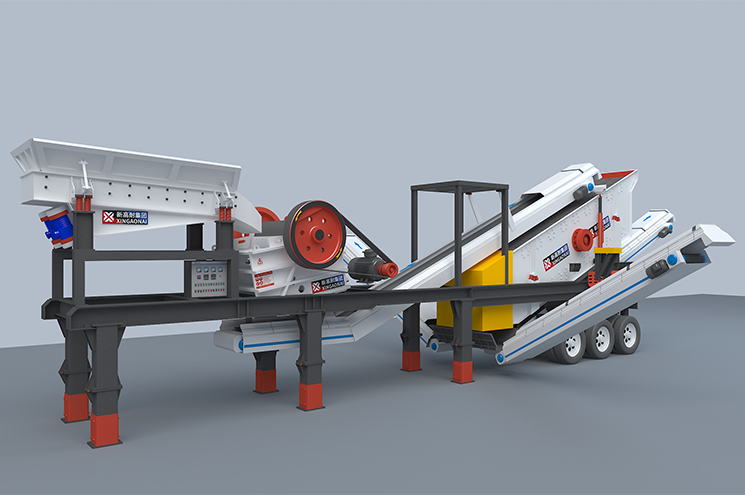

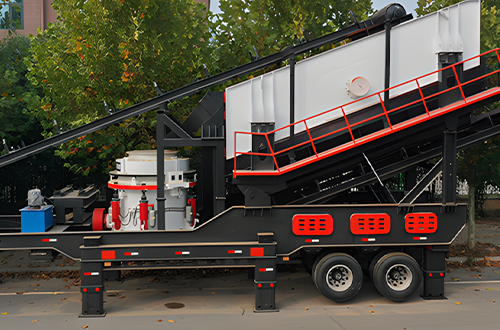

Hard Rock Mobile Crushing Plant is a fully integrated solution for on-site crushing of hard and abrasive stones. Designed to process materials with high compressive strength, such as granite, basalt, and quartz, it combines robust crushing equipment—such as jaw crushers, cone crushers, or impact crushers—with a mobile platform to deliver high productivity in tough conditions. Plant structure includes feeding, primary and secondary crushing, screening, and conveying systems, all mounted on a wheeled or tracked chassis. This configuration allows rapid deployment and relocation between different project sites, saving time and infrastructure investment. Hard Rock Mobile Crushing Plant is widely used in open-pit mining, road and bridge construction, railway ballast production, and aggregate manufacturing. With its reliable performance, low energy consumption, and intelligent control system, it provides a powerful and flexible solution for modern hard rock processing needs.

Technical Parameters

Standard model	Matching equipment		Feed size (mm)	Capacity (t/h)	Complete station capacity (t/h)	Overall size (mm)
KPEV69-1	ZGC1038	PEV600×900	≤500	100-180	≤100-220	13560×2890×4930
KPEV75-1	ZGC1238	PEV750×1060	≤630	100-300	≤120-330	15340×2920×5370

Standard model	Matching equipment		Feed size (mm)	Capacity (t/h)	Complete station capacity (t/h)	Overall size (mm)
KHP200	HP200	3YK2160	70-190	–	≤70-220	14640×2920×6470
KHP300	HP300	3YK2470	80-200	–	≤120-330	14790×3050×6660

Standard model	Matching equipment		Feed size (mm)	Capacity (t/h)	Complete station capacity (t/h)	Overall size (mm)
VSI-9532	VSI9532	2YK2470	≤40	150-220	≤180-250	14970×2920×7595
VSI-8522	VSI8522	2YK2160	≤40	100-120	≤100-150	14500×2800×7200

360° panoramic view of the product

No pictures

Working Principle

Raw materials such as limestone or coal are loaded into feeding hopper by excavator or loader. Material then enters primary crusher (usually jaw crusher or impact crusher) where it is broken down into smaller pieces. Crushed material is transferred via integrated belt conveyor to vibrating screen for classification. Oversized material is returned to crusher for further reduction, while qualified product is discharged for storage or further processing. Mobile chassis enables entire system to move easily between work sites. Diesel engine or electric motor powers equipment, and centralized control system ensures safe and efficient operation. Optional dust suppression systems and noise reduction designs help minimize environmental impact during operation.

Features

Application

Flexible Mobility

The structure of the whole vehicle is compact, and it is convenient to change the site, enter and exit the site, and reduce the transportation cost of raw materials

Customized

According to the different needs of customers and combined with the actual situation, various unit configurations are provided, which can be used for stand-alone operation or joint operation

dETAIL

Product Detail Show
