Introduction

Fine Sand Recovery Machine, also called fine sand recycling system, is designed to collect and reuse fine particles (typically below 0.16mm) that are usually lost during sand washing or dewatering. It effectively solves problem of fine sand loss and low recovery rate in traditional sand processing. This machine combines functions of slurry pumping, cleaning, dehydration, and fine sand separation. It helps increase economic efficiency by improving output quality, reducing sedimentation in sediment ponds, and minimizing environmental impact. With features like high recovery efficiency, compact structure, and easy operation, it has become an essential component in modern sand production systems.

Technical Parameters

Model	Width×Length (mm)	Screening machine power (kw)	Cyclone specifications	Capacity (t/h)	Water consumption (m³/h)	Slurry pump power (kw)	Total power (kw)	Weight (kg)	Overall size length×width×height (mm)
KLZ 1224-35	1200×2400	2.2*2	350	50-80	80-120	18.5	23	2376	3000×1800×2773
KLZ 1530-65	1500×3000	3*2	300*2	80-100	120-180	15*2	36	3745	3500×2100×3200
KLZ 1840-75	1800×4000	5.5*2	350*2	100-140	160-240	18.5*2	48	5350	4500×2400×3300
KLZ 2050-100	2000×5000	11*2	250*4	120-160	200-280	18.5*2	59	6736	5500×2600×3520
KLZ 2250-100	2250×5000	11*2	250*4	150-220	200-280	22*2	66	7850	5500×2800×3600

360° panoramic view of the product

No pictures

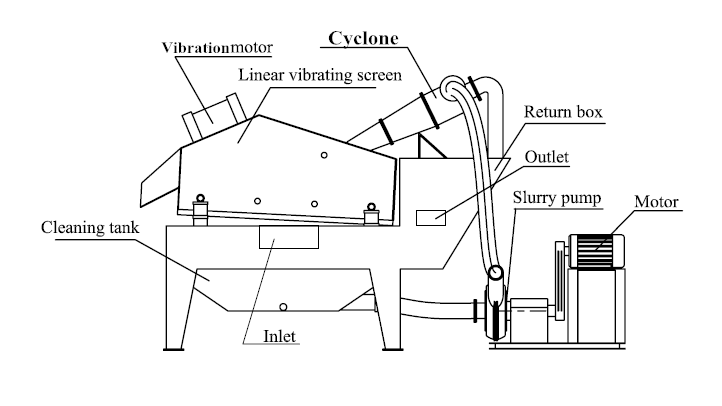

Working Principle

Slurry containing fine sand, discharged from sand washing machine or classifier, flows into a specially designed slurry tank. From there, a slurry pump transports mixture into high-efficiency hydrocyclone. Under centrifugal force generated by high-speed rotation inside hydrocyclone, fine sand and water are separated — coarse particles and fine sand are thrown outward and downward, while clean water overflows from top. Separated fine sand is then delivered to a high-frequency dewatering screen. On this vibrating screen, water passes through screen mesh while fine sand is retained and gradually moves forward by vibration. Excess water is drained away, and dewatered fine sand is discharged from front end of screen. Recovered sand can be reintroduced into finished product pile or returned to system for further processing. This closed-cycle process not only improves overall sand recovery rate, but also reduces loss of valuable fine particles, minimizes environmental pollution, and enhances economic efficiency of sand production.

Features

Application

Not Easy To Block

The vibrating screen adopts wear-resistant polyurethane screen, which has a longer service life than other types of screens

Improve Resource Utilization

The fine particles are recycled, reducing the waste rate, and the finished products can be directly transported away, saving site costs

Polyurethane Material

The cyclone is lined with polyurethane to improve the service life of the device and complete the work of slurry concentration and liquid clarification

High Recovery Rate

85% of fine particles can be recovered, and customized models can be customized

dETAIL

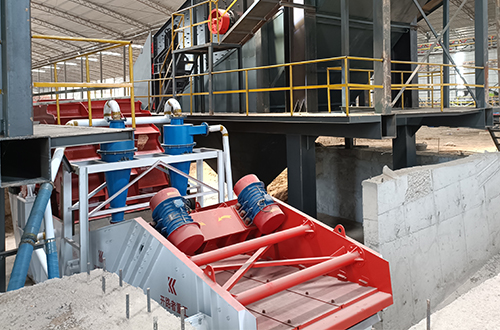

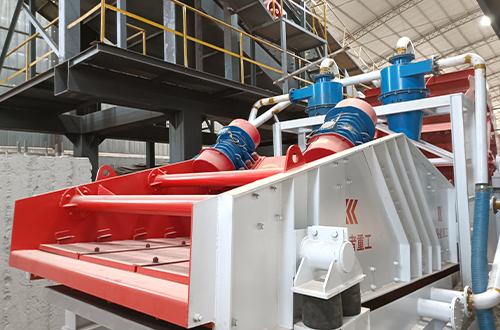

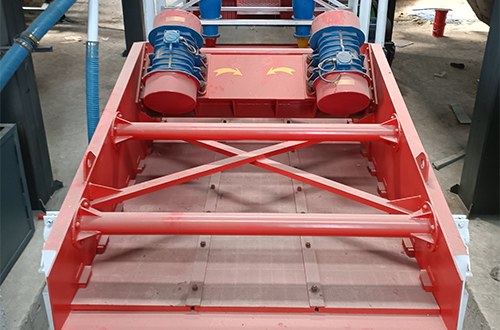

Product Detail Show
