Introduction

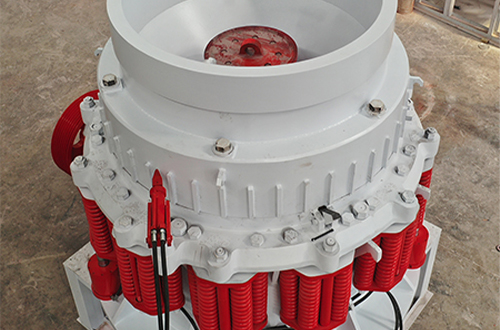

Compound Cone Crusher combines advanced spring and hydraulic technologies to deliver reliable and efficient crushing performance across a wide range of materials. Designed for secondary and tertiary crushing stages, it excels in processing hard and abrasive ores, producing high-quality aggregates with good particle shape. The crusher features a robust design with a strong main shaft, optimized crushing chamber, and an overload protection system that ensures operational safety and prolonged equipment life. Its multi-cylinder structure enhances crushing force and improves particle uniformity. Thanks to its low maintenance requirements, flexible adjustment capabilities, and high productivity, the compound cone crusher has become a popular choice in mining, quarrying, cement production, and infrastructure development projects.

Technical Parameters

Model	Function	Stroke (mm)	Max feed size (mm)	Discharge port adjustment range (mm)	Capacity (t/h)	Motor Power (kw)	Weight (t)
K 1200C-D	Coarse crushing	22	180	19-50	110-250	132	16
K 1400C-D	Coarse crushing	30	235	25-65	210-530	220	25
K 1400Z-D	Medium crushing	30	215	22-50	200-500	220	25
K 1400Z-X	Medium crushing	25	180	19-45	180-475	220	25
K 1650C2-D	Coarse crushing	34	300	31-65	280-610	250	35
K 1650C-D	Coarse crushing	34	260	25-65	265-580	250	35
K 1650Z-D	Medium crushing	34	240	19-50	240-550	250	35

360° panoramic view of the product

No pictures

Working Principle

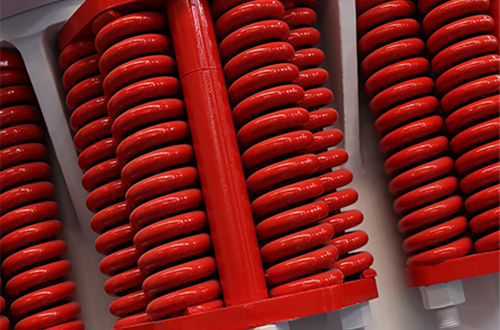

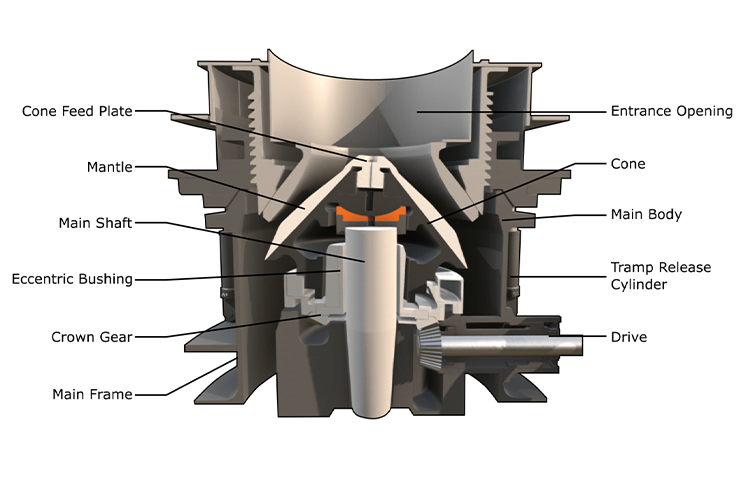

The compound cone crusher works by combining spring and hydraulic mechanisms to achieve stable and efficient crushing. Driven by a motor, the eccentric bushing rotates and causes the moving cone to swing around a central axis. This motion compresses material between the fixed and moving cones, crushing it through repeated squeezing and inter-particle collision. Crushed material is discharged from the bottom once it reaches the desired size. The spring system provides overload protection by allowing uncrushable objects to pass through safely, while some models also feature hydraulic adjustment and cavity cleaning to enhance operational efficiency.

Features

Application

High Processing Capacity

High performance and high frequency, using the principle of laminated crushing

Reliable Operation

It is sealed with grease to avoid the disadvantages of easy blockage of water supply and drainage system and the defect of easy mixing of water and oil

Reasonable Design

The structure is simple, easy to operate and maintain, and reduces downtime

Low Failure Rate

It is easy to use, easy to realize automation, and the equipment failure rate is reduced by 90%

dETAIL

Product Detail Show
